Align-boring the valve cylinders

August, 2001.

The task of align-boring (sometimes incorrectly called line-boring) the valve cylinder is one part of the larger job of rebuilding the valves.


Click on thumbnail or text to see larger photo.

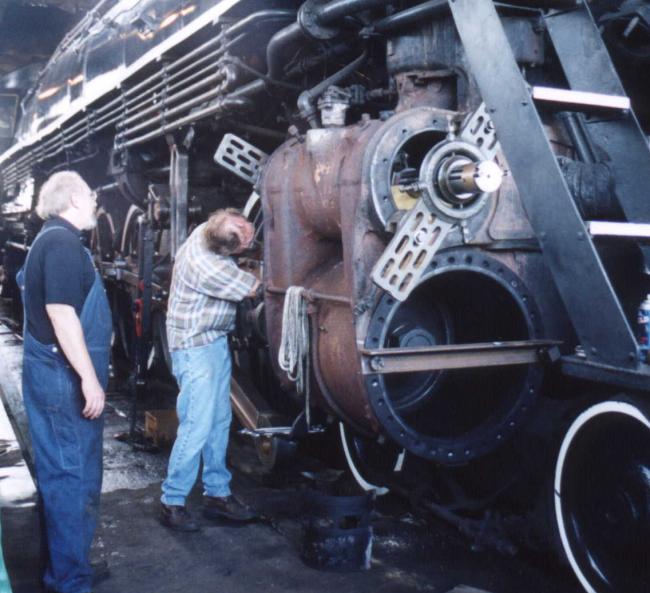

Machinist Tom Weisner and his assistant Dale Birkholz are setting up the Underwood boring bar on the fireman's side valve, while Don Wheeler, PRPA President, looks on. Photo by Terry Thompson

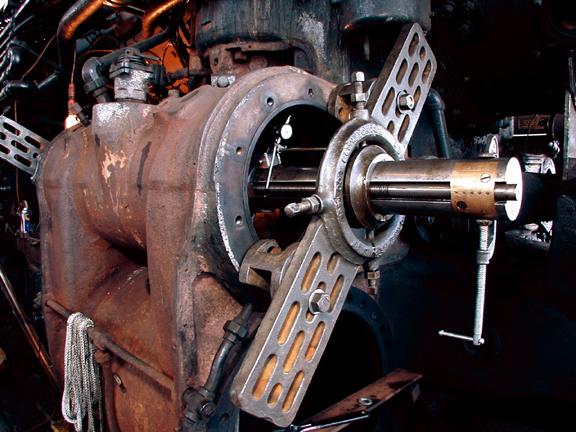

Machinist Tom Weisner setting up the Underwood boring bar on the fireman's side valve. Photo by Dale Birkholz

Aligning the bar. Photo by Dale Birkholz

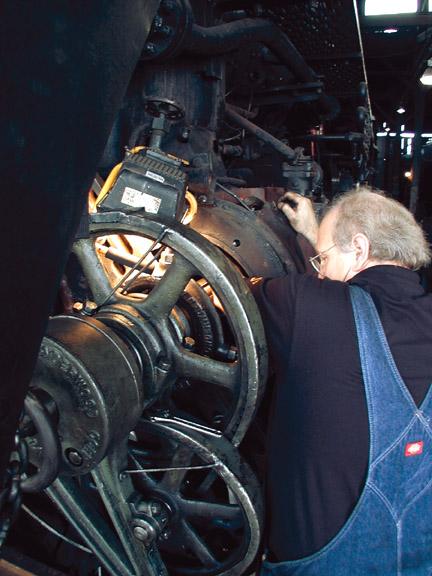

Aligning the bar to the exact center line of the cylinder. Photo by Dale Birkholz

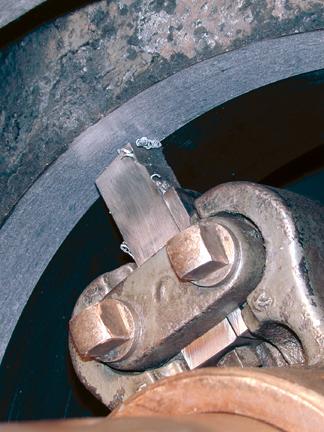

Cutting tool. Dark area is surface yet to be machined. Photo by Dale Birkholz

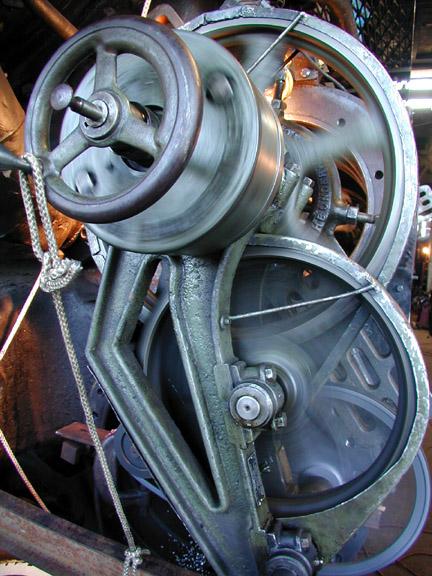

Underwood boring bar in operation. Photo by Dale Birkholz

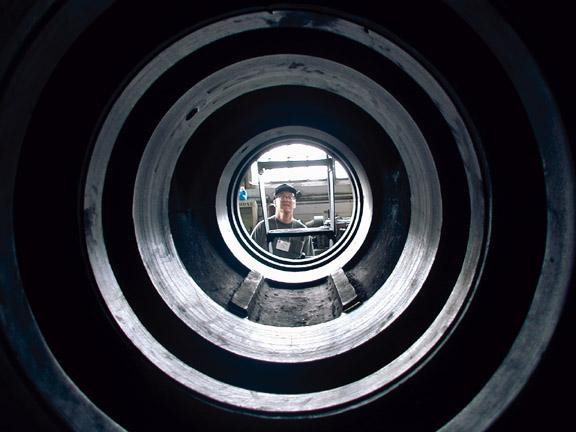

View through the left valve looking forward. Dark spots on near seat are witness marks. Photo by Dale Birkholz

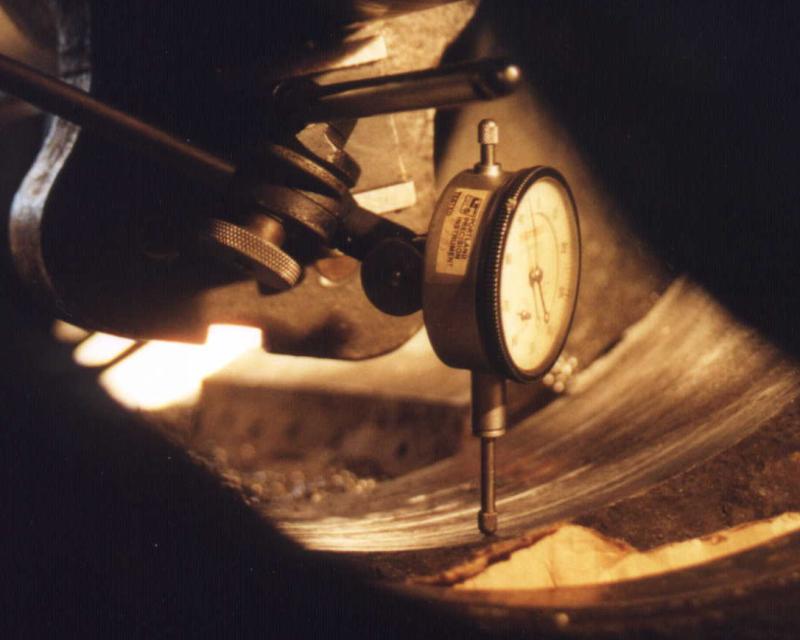

Aligning the boring bar with dial indicator. Photo by Terry Thompson

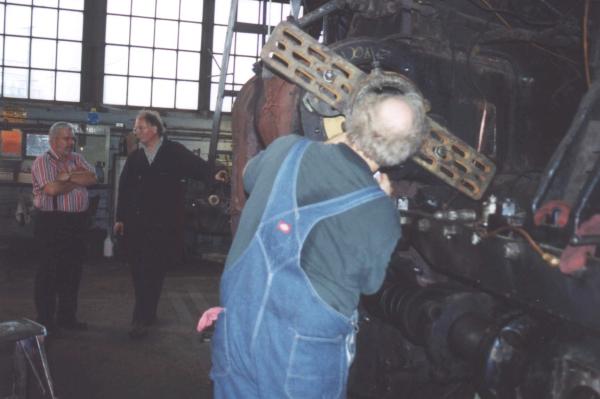

Machinist Tom Weisner (left), assisted by Dale Birkholz, setting up to bore the valve cylinder on the engineer's side. Photo by Terry Thompson
